ZA-PT520 Pan Tilt Positioner For Mouting Camera
2.RS-485/422 Pelco-D serial control
3.360 continuous rotation
4.Positioning support - Angle readout/query
5.Worm and gear transmission
6.Position accuracy: +-0.1
6.IP66
Send Inquiry
Chat Now
Product Introduction
Description

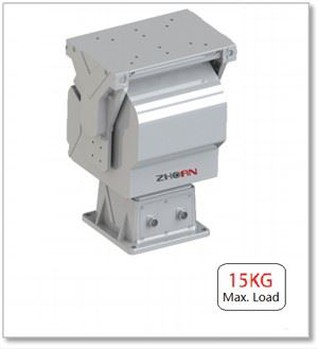

The ZA-PT520 large sized pan tilt head is a long Range PT unit with payload up to 15kg. 360 continuous rotation. Heavy duty pan/tilt design made for harsh enviroment IP66/IP68, made of high grade stainless steel or high quality painted aluminum with stainless fittings.
|
Specifications for ZA-PT520 large sized pan tilt head |
|
|
Material |
Aluminum |
|
Max. Load |
15kg |
|
Load Mode |
Top loading |
|
Transmission |
Worm and Gear |
|
Tilt Angle |
+40° ~ -75° |
|
Pan Angle |
360° continuous rotation |
|
Pan Speed |
0.01 ~ 60° /S |
|
Tilt Speed |
0.01 ~ 30º/S |
|
Preset |
200 |
|
Preset Accuracy |
±0.1° |
|
Self-adaptive Speed |
Support |
|
Cruise |
Support |
|
Petrol |
Support |
|
Memory as Power off |
Support |
|
Lens Preset |
Support |
|
Lens Control |
Support |
|
Communication Interface |
RS422/RS485 |
|
Protocol |
Pelco-D |
|
Baud Rate |
2400/4800/9600/19200 |
|
Angle feedback |
Support angle feedback by query command RS485 (Optional real time angle feedback RS422) |
|
Systems |
|
|
Power |
DC24V± 10%, |
|
Power Consumption |
≦90W |
|
Interface |
1 line 10M/100M self-adaptive Ethernet 1 line AC24V/DC24V RS422/485, Analog Video (optional) |
|
Environment |
Temperature: -35°C 〜+65°C Protection level: IP66 |
|
Weight |
13kg |
|
Dimension |
249 ×227×349mm (L×W×H) |
Application of pan tilt head
