Should you're interested in the long ranged motored pan tilt head/platform/positioner, welcome to contact our manufacturers and suppliers. We're equipped with a professional factory, please be free to get the customized products made in China with us.

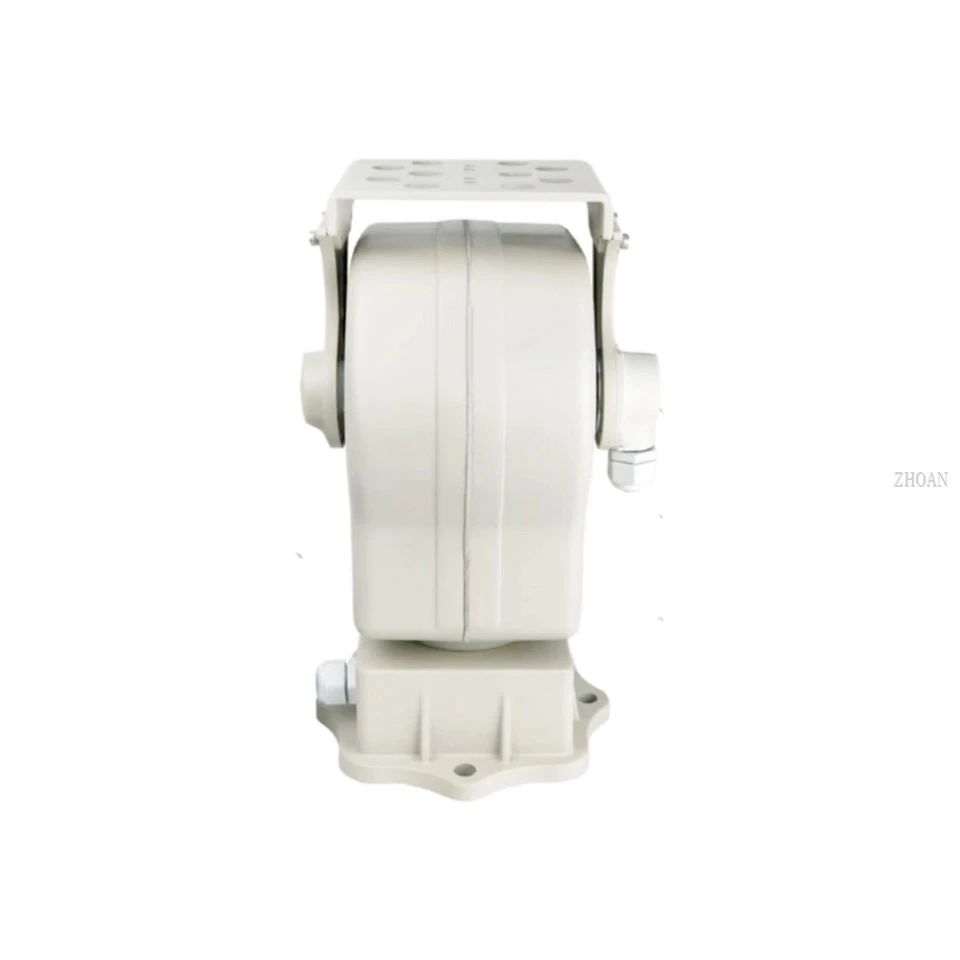

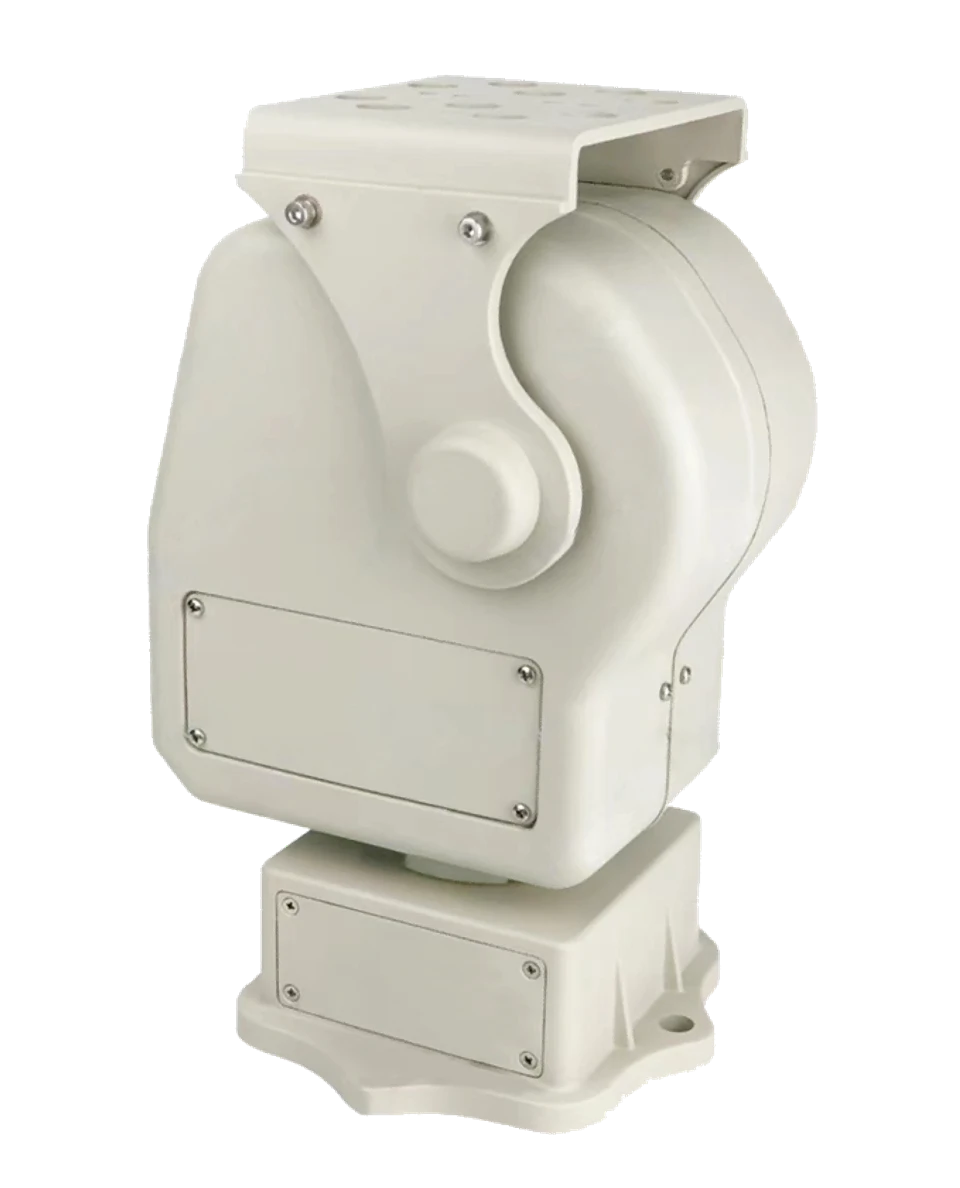

ZA-PT409 pan tilt head/positioner/platform used for long ranged video surveillance. Top loaded with cameras, laser, or other devices.

Can be customzied as your requirement.

Technical Data:

Model	ZA-PT409
Max. load	6kg
Load Mode	Top load
Driving	Gear driving
Pan Rotation Angle	360° continuous
Tilt Rotation Angle	﹣90°～+20°
Pan Speed	1°/s～7°/s
Tilt Speed	1°～5°/s
Preset Position	80
Presetting Precision	±0.5°
Speed Self-adaption	Support
Auto Scan	support
Auto Cruise	support
Keep Watch	Support, one preset or one auto cruise or one auto scan can be set
Power Failure Memory	Support, recover to PTZ satus before power failure
Communication Interface	RS485
Protocol	Pelco D
Baud Rate	2400/4800/9600/19200 bps optional
Angle Query Return	RS485, angle return by query command / RS422, angle real-time return ( optional)
System
Input Voltage	24VDC±5%
Consumption Power	≤60W
Input Interface	10/100M Ethernet * 1; 24VDC * 1 ; Optional: RS485 / RS422 / Analog video
Working Temperature	﹣35°C～﹢65°C
Humidity	＜90%RH
Anti-lighting	Power : 2000V (line to ground 2000 V, line to line 1000V) , Video signal : 1000V (line to ground 1000 V, line to line 500V)
Salt Spray Resistance	PH 6.5 〜7.2, continuous spraying 48 hours without surface change
Waterproof	IP66
Material	Aluminum alloy
Weight	≤5.5kg
