Explosion Proof Integrated Camera

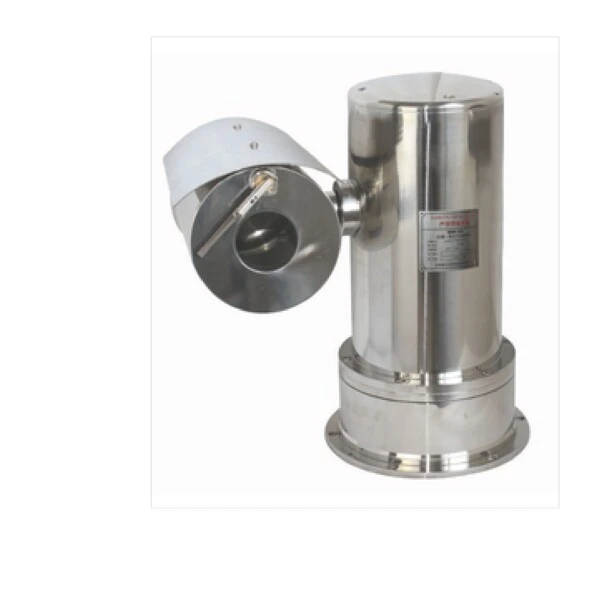

Home > Product > Explosion Proof Integrated CameraExplosion Proof Intelligent Integrated Pan Tilt Camera
1: Explosion Proof Intelligent Integrated Camera 2: Model:ZA-EX111-20ZF 3: Brand Name: ZHOAN 4: Country of origin: China
Chat NowExplosion proof level: ExdllCT6/DIP A20 TA, T6
High repeat precision
All-weather environmental adaption capability, IP68
Support OSD menu function
Housing can built in heating elements
Electron-polished stainless steel material, anti electromagnetic interference
With memory function in case of power-down
Support lightning protection, surge prevention
Model | ZA-EX111-20ZF |
Function of PT | |
Input voltage | AC24V |
Input voltage range | ±25％ |
Working current | <500mA Power waste: about 100 W |
Communication | RS485 |
Communication rate | Self-adaption |
Protocol | PELCO-D/P ONVIF2.0 |
IR distance | 50, 80, 100m |
Front window | Nanometre coating toughened glass |
PTZ control | Support zoom self-adaptable, support PTZ simultaneous control |
Work environment | -40˚C~55˚C humidity<90％RH(25˚C) |
Preset quantity | 80 |
Preset precision | ≤0.1˚ |
Material | Stainless steel 316L |
Protection Grade | IP68 |
Inner cavity size | 220(L)x80(W)x70(H)mm |
Horizontal rotation | 360˚ |
Vertical rotation | +90˚~-90˚ |
Horizontal rotation speed | 0.01˚~60˚/S |
Vertical rotation speed | 0.1~60˚/S |
Unit weight | 32Kg |
Transport weight | 35Kg |
Installation | Fixed bracket, base, column |
Parameters of camera | |
Type of sensor | 1.28’’ Progressive Scan CMOS |
Day and night conversion mode | ICR infrared filter |
Noise signal ratio | >52dB |
Electronic shutter | 1/1s 1/30,000s |
Resolving power | 50HZ:25fps(1920x1080)60HZ:30fps(1920x1080) 50HZ:25fps(1280x720)60HZ:30fps(1280x720) |
Colour | |
Black and white | |
White balance | Auto1/Auto2/Indoor/Outdoor/Manual/Sodium lamp/Daylight lamp |
3D Noise reduction | Support |
Focus | 4.7-9.4mm, 20 times optics |
Light ring | F1.6-F3.5 |
Horizontal view angle | 61.4-2.0˚(wide angle - tele) |
Near shooting distance | 10-1500mm(wide angle - tele) |
Exposure mode | Auto exposure/Aperture priority/Shutter priority/Manual priority |
Focusing mode | Auto focusing/One time focusing/Manual focusing |
Wide dynamic | OFF/ON, Adjustable grade 4 |
Video compression standard | H.264/MJPEG |
Compression output code rate | 32Kbps~16Mpbs |
Imaging setting | Saturation, brightness, contrast ratio adjustable through client and IE Browser |
Storage function | Support micro SD |
Intelligent alarm | Motion detection |
Support protocol | TCP/IP HTTP DHCP DNS IPv6 (SIP, SRTP, optional) |
General function | Double bit stream, heartbeat, password protection |
Communication protocol | 1 RJ45 10M/100M self-adaptable ethernet, 1 RS-485 interface |
Interface protocol | ONVIF, PSIA, CGI |
